NI-9215
Starting at $1,127.00
783739-01
779138-01
779011-01
±10 V, 100 kS/s/ch, 16-Bit, Simultaneous Input, 4-Channel C Series Voltage Input Module
Overview
The NI-9215 performs differential analog input. The module contains NIST-traceable calibration, a channel-to-earth ground double isolation barrier for safety and noise immunity, and high common-mode voltage range. It is also offered in three connectivity variants: 10-position screw terminal, spring terminal, or BNC.
Included Items
- Module
- NI-9936 10-position screw terminal plug (Included only with screw terminal module, part number 779011-01)
- NI-9980 10-position spring terminal plug (Included only with spring terminal module, part number 783739-01)
- Safety, Environmental, & Regulatory documentation
Part Numbers (3) Price | 783739-01 | 779138-01 | 779011-01 |
|---|---|---|---|
| NI Lead Time | 12-13 weeks | 12-13 weeks | 12-13 weeks |
| Maximum Number of Differential Analog Input Channels | 4 | 4 | 4 |
| Supported Hardware Platform | C Series | C Series | C Series |
| Conformal Coated | No | No | No |
| Analog Input Voltage Range | -10 V to 10 V | -10 V to 10 V | -10 V to 10 V |
| Enclosed | Yes | Yes | Yes |
| Analog Input Resolution | 16 bits | 16 bits | 16 bits |
| Maximum Sample Rate | 100 kS/s/ch | 100 kS/s/ch | 100 kS/s/ch |
| Analog Input Isolation | 250 Vrms Ch-Earth Ground Isolation | 60 VDC Ch-Earth Ground Isolation | 250 Vrms Ch-Earth Ground Isolation |
| Maximum Number of Single-Ended Analog Input Channels | 0 | 0 | 0 |
| Front Connection Type | Spring Terminal(1) | BNC(4) | Screw Terminal(1) |
| Simultaneous Sampling | Yes | Yes | Yes |
| Bus Connection | C Series | C Series | C Series |
| Reconfigurable | — | — | — |
| Maximum Analog Update Rate | — | — | — |
| Number of Analog Input Channels | — | — | — |
| Filtering | Greater than 100 KHz | Greater than 100 KHz | Greater than 100 KHz |
| Number of Analog Output Channels | — | — | — |
| Number of Current Output Channels | — | — | — |
| Number of Voltage Output Channels | — | — | — |
| Analog Output Voltage Range | — | — | — |
| Output Current Range | — | — | — |
| Analog Output Isolation | — | — | — |
| Analog Output Resolution | — | — | — |
| Number of Bidirectional Digital Channels | — | — | — |
| Digital I/O Logic Levels | — | — | — |
| Analog Input Absolute Accuracy | — | — | — |
| Analog Input Maximum Absolute Accuracy | — | — | — |
| Operating Temperature Range | -40 °C to 70 °C | -40 °C to 70 °C | -40 °C to 70 °C |
| Number of Counters/Timers | — | — | — |
| Product Description | NI 9215 Spring Term, +/-10 V, 16-Bit, 100 kS/s/ch, 4-Ch AI Module | NI 9215 BNC, +/-10 V, 16-Bit, 100 kS/s/ch, 4-Ch AI Module | NI 9215 Screw Term, +/-10 V, 16-Bit, 100 kS/s/ch, 4-Ch AI Module |
NI-9215 Accessories and Software

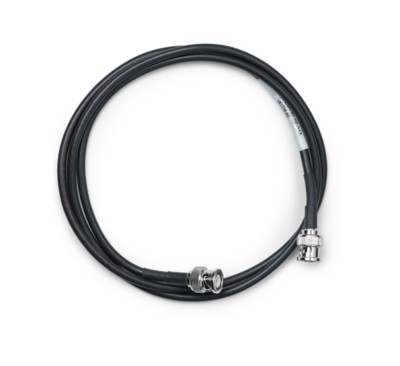

- Model (Part Number)DescriptionImageCompatible Part NumbersNI-9402 (779987-01)NI-9402 C Series Digital Module, Input/Output, 4-Ch, 50 ns, LV TTL, BNC779138-01BNC-BNC Coaxial Cable (183882-33)BNC Male to BNC Male Cable, 75 Ohm, 33 cm (Quantity 2)779138-01BNC-BNC Coaxial Cable (781887-01)BNC To BNC Cable, 50 Ohm, 0.9 M779138-01NI-9222 (783283-01)NI 9222 BNC, +/-10 V, 16-Bit, 500 kS/s, 4-Ch, SS AI Module779138-01NI-9239 (780181-01)NI 9239 BNC, 4-Ch +/-10 V, 50 kS/s/Ch,24-Bit, Ch-Ch ISO AI Module779138-01BNC-BNC Coaxial Cable (779697-02)BNC Male to BNC Male Cable, 75 Ohm, 2 m (Quantity 4)779138-01NI-9232 (784397-01)NI 9232 BNC, 3-Ch, +/-30 V, 102.4 kS/s/ch, 24-Bit, IEPE AI C Series Module779138-01NI-9230 (784396-01)NI 9230 BNC, 3-Ch, +/-30 V, 12.8 kS/s/ch, 24-Bit, IEPE AI Module779138-01BNCM-BNCM Cable for VirtualBench (159103-02)50 Ohm BNC Cable, Male to Male, 2m779138-01NI-9775 (784539-01)NI 9775, 4-Ch, +/-10 V, 20 MS/s/ch, Digitizer C Series Module779138-01NI-9250 (783827-01)NI 9250 BNC, +/- 5 V, 24-Bit, 102.4 kS/s/ch, 2-Ch SE, AI C Series Module779138-01NI-9229 (780180-01)NI 9229 BNC, 4-Ch +/-60 V, 50 kS/s/Ch, 24-Bit,Ch-Ch ISO AI Module779138-01NI-9260 (783466-01)NI 9260 BNC, +/-4.24 V, 24-Bit, 51.2 kS/s/ch, 2-Ch AO Module779138-01NI-9234 (779680-03)NI-9234 C Series Sound and Vibration Input Module, 4-Ch, 51.2 kS/s, IEPE and AC/DC, Conformal Coated779138-01NI-9234 (779680-01)NI-9234 C Series Sound and Vibration Input Module, 4-Ch, 51.2 kS/s, IEPE and AC/DC779138-01NI-9223 (783284-01)NI 9223 BNC, +/-10 V, 16-Bit, 1 MS/s, 4-Ch, SS AI C Series Module779138-01
