CDA-2990
Starting at $2,466.00
784305-01
784306-01
8-Channel, 10 MHz Clock Distribution Device
Overview
The CDA-2990 helps you synchronize systems that include USRP Software Defined Radio Devices. It accepts both external 10 MHz and pulse-per-second (PPS) input signals and amplifies and distributes the signals to eight output ports. The CDA-2990 is available in a configuration for distributing externally supplied signals. You can also choose the GPS-disciplined oscillator (GPSDO)-enabled option, which integrates a GPS-disciplined oven-controlled crystal oscillator (OCXO) that generates the 10 MHz and PPS signals internally.
Included Items
- Module
- Mounting Bracket, Ettus Ocotoclock Chassis
- 100 to 240 VAC Power Supply
- 5 Count, M4 Screw
- 4 Count, Rubber. Adhesive Foot
- Safety, Environmental, & Regulatory documentation
CDA-2990 Details
Part Numbers (2) Price | 784305-01 | 784306-01 |
|---|---|---|
| NI Lead Time | 12-13 weeks | 12-13 weeks |
| Bus Connection | Ethernet | Ethernet |
| Onboard Clock Type | — | — |
| Onboard Clock Accuracy | — | 25 ppb |
| Backplane Clock Override | — | — |
| Protocol Support | — | — |
| Clock Export | Yes | Yes |
| Clock Import | Yes | Yes |
| Trigger Access | — | — |
| Product Description | CDA-2990 8 Channel Clock Distribution Accessory | CDA-2990 8 Channel Clock Distribution Accessory with GPSDO |
CDA-2990 Accessories and Software

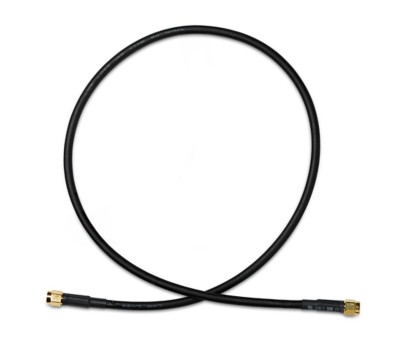

- Model (Part Number)DescriptionImageCompatible Part NumbersSMA-SMA USRP Cable (783469-01)SMA Male to SMA Male Cable for USRP, 50 Ohm, 1 m784305-01, 784306-01
