SLSC-12201

Starting at $3,801.00
Part number(s):
785356-01

33 V Digital I/O Module for SLSC

Overview

The SLSC-12201 offers 32 bidirectional digital channels. When you configure the channels as outputs, you can program them to be in sourcing, sinking, or push-pull mode with up to 50 mA of current per channel. When you configure the channels as inputs, you can program them to be in sourcing or sinking mode and set the logic transition threshold. The SLSC-12201 offers signal levels compatible with automotive and aerospace levels.

Included Items

  • Module
  • Safety, Environmental, and Regulatory documentation

SLSC-12201 Details

Ask an expert
Part Numbers (1) Price
785356-01
Contact us
NI Lead Time
10-11 weeks

SLSC-12201 Accessories and Software

  • Model (Part Number)
    Description
    Compatible Part Numbers
    RTI-12301 (786330-01)
    RTI-12301B: RTI DIO 32 for SHC68-C68-RDIO2 Rev 2

    Accessory
    785356-01
    View Product Details

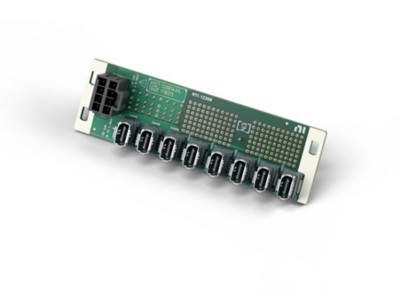

    RTI-12309 (787766-01)
    RTI-12309: Rear Transition Interface for Generic DIO/AO/AI with 8 IX Headers

    Accessory
    785356-01
    View Product Details
  • Model (Part Number)
    Description
    Compatible Part Numbers
    SH68M-4IXBF DIO DIFF (134727-01)
    SH68M-4IXBF Differential Digital I/O Cable, 1 Meter

    Accessory
    785356-01
    View Product Details
    SH68M-4IXBF DIO DIFF (134727-1R6)
    SH68M-4IXBF Differential Digital I/O Cable, 1.6 Meters

    Accessory
    785356-01
    View Product Details
  • Model (Part Number)
    Description
    Compatible Part Numbers
    SHC68-C68-RDIO2 Cable (156166-02)
    SHC68-C68-RDIO2 Shielded R Series High Speed Digital Cable, 2m

    Accessory
    785356-01
    View Product Details
    SHC68-C68-RDIO2 Cable (156166-01)
    SHC68-C68-RDIO2 Shielded R Series High Speed Digital Cable, 1m

    Accessory
    785356-01
    View Product Details

Resources

SLSC-12201 Getting Started Guide(s)
SLSC-12201 Dimensional Drawing(s)
SLSC-12201 Letter of Volatility
SLSC-12201 Specifications
