PXIe-4330

Name: PXIe-4330
Price: 6323.0 USD
Availability: InStock

Starting at $6,323.00

Part number(s):

781346-01

25 kS/s, 24-Bit, 8-Channel PXI Strain/Bridge Input Module

Overview

The PXIe-4330 is a simultaneous input module that provides integrated data acquisition and signal conditioning for bridge-based sensors. The PXIe-4330 includes increased accuracy, high data throughput, and synchronization features, making it ideal for high-density measurement systems. To remove noise, the PXIe-4330 offers antialiasing and digital filters per channel. Each channel also features an independent, programmable excitation voltage. Additionally, the PXIe-4330 provides remote sensing, internal bridge completion, and shunt calibration options per channel.

Included Items

Module
Safety, Environmental, & Regulatory documentation

Part Numbers (1) Price	781346-01


NI Lead Time	11-12 weeks
Analog Input Voltage Range	-25 mV/V to 25 mV/V#-100 mV/V to 100 mV/V
Maximum Sample Rate	25.6 kS/s
Maximum Number of Differential Analog Input Channels	8
Bridge Configurations	Full Bridge#Quarter Bridge#Half Bridge
Bridge Resistance	120 Ohm#1000 Ohm#350 Ohm
Supported Hardware Platform	PXI

PXIe-4330 Accessories and Software

Model (Part Number)
Description
Compatible Part Numbers

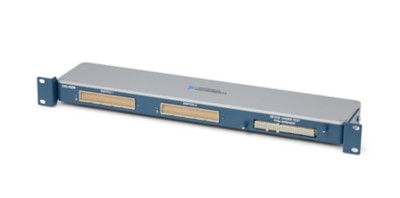

RM-24999 (785840-01)
RM-24999, Rackmount TB for PXIe-4330 and PXIe-4331
781346-01
View Product Details
Model (Part Number)
Description
Compatible Part Numbers
SH96F-96M-5 (786341-03)
Shielded Cable for PXIe-4330 and PXIe-4331 to Rackmount Terminal Block, 3 Meter
781346-01
View Product Details

Software (2)

Product (Part Number) Description	Recommended use cases
FlexLogger Professional (785748-3501) FlexLogger Professional, Subscription License, Download	Recommended for automated, extensible data logging with NI data acquisition (DAQ) hardware. Automate tests using alarms, triggers, and events, and expand capabilities with plug-ins. Key Features Multichassis synchronization—Synchronize multiple NI chassis for accurate, time-aligned measurements across high channel counts. Logging triggers—Start, stop, or segment data recording automatically based on sensor thresholds or other conditions to capture only what matters. Events—Respond to specific occurrences during a test, such as activating equipment when a condition is met (for example, start cooling fans when temperature exceeds a limit). Automation APIs—Control and monitor FlexLogger from external applications (Python, NI LabVIEW, or NI TestStand), enabling integration into larger automated test systems. Calculation channels—Perform real-time math on acquired data (averages, RMS, custom formulas) to track derived measurements as the test runs. Plug-ins—Extend FlexLogger with custom LabVIEW or Python plug-ins to integrate third-party hardware, perform custom analysis, or connect to lab systems. CAN/LIN logging—Acquire and log automotive network data alongside sensor measurements for complete vehicle or subsystem testing.	View Product Details
LabVIEW+ Suite (788509-35) NI LabVIEW+ Suite, Subscription License, Download	Recommended for engineers building full test and validation systems where modular code development and higher-level frameworks are needed to accelerate development for shorter time to market. The LabVIEW+ Suite includes the following products: NI LabVIEW—Provides a graphical programming environment for test system development, enabling connectivity to any instrument and fully integrated user interfaces. NI TestStand—Eliminates the need for time-intensive in-house sequencer development and maintenance by providing an off-the-shelf test management software for validation and production test. NI DIAdem—Saves engineers hundreds of hours of manual data analysis and report creation with automation. NI FlexLogger™ software—Simplifies data acquisition and data logging with interactive measurement setup for NI DAQ hardware. NI InstrumentStudio™ software—Provides a central location for configuration, measurement, and automation.	View Product Details
