PCIe-1477

Name: PCIe-1477
Price: US$7,119.00 USD
Availability: InStock

Starting at $7,119.00

Part number(s):

786502-01

80-Bit Camera Link, PoCL-Compatible Frame Grabber Reconfigurable Device

Overview

The PCIe-1477 works well for deployment systems and features a user-programmable FPGA for onboard image processing. Placed directly in the image path, FPGAs can acquire and process images with closed-loop control without CPU intervention. This technology is also suitable for high-throughput system architectures to preprocess image data on the FPGA and then send the data to the CPU for further processing and decision-making. The PCIe-1477 also supports Power over Camera Link (PoCL), which you can use to power cameras through PoCL-enabled cables.

Included Items

Device
NI Vision Acquisition Software (VAS), perpetual license, with media
Safety, Environmental, and Regulatory documentation

Part Numbers (1) Price	786502-01


NI Lead Time	8-9 weeks
Camera Interface Type	Camera Link - 80-bit
Number of Camera Input Ports	1
Reconfigurable	Yes
FPGA	Kintex-7 325T
Number of TTL Inputs	6
Number of Quadrature Encoder Inputs	1

PCIe-1477 Accessories and Software

Cables (2)

Model (Part Number) Description	Image	Compatible Part Numbers
POCL Cable (199745-05) Cable, Power over Camera Link (PoCL), MDR to SDR, 5M		786502-01	View Product Details

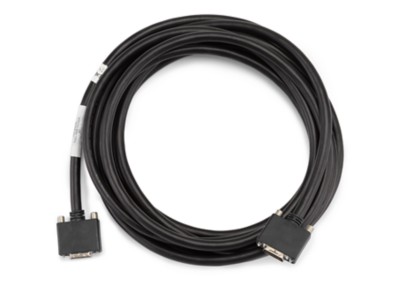

POCL Cable (199744-05) Cable, Power over Camera Link (PoCL), MDR to MDR, 5M		786502-01	View Product Details

Software (3)

Product (Part Number) Description	Recommended use cases
LabVIEW Professional (784584-35) LabVIEW Professional Development System, Windows, All Languages, Subscription License, Download	Recommended for test, measurement, automation, and control applications; NI LabVIEW enables engineers to quickly connect to real-world systems, accelerate their productivity, and adapt to any challenge. LabVIEW provides the following capabilities: Connectivity to any Instrument regardless of vendor A native user interface for monitoring and controlling test Thousands of engineering analysis functions Seamless interoperability popular programming languages, such as Python, C, and .NET	View Product Details
Vision Development Module (788427-35) Vision Development Module, Subscription License, Download	Recommended for machine vision applications, the NI Vision Development Module enables users to configure cameras, acquire images, and analyze inspection results to build fully customized machine vision systems.	View Product Details
LabVIEW+ Suite (788509-35) NI LabVIEW+ Suite, Subscription License, Download	Recommended for engineers building full test and validation systems where modular code development and higher-level frameworks are needed to accelerate development for shorter time to market. The LabVIEW+ Suite includes the following products: NI LabVIEW—Provides a graphical programming environment for test system development, enabling connectivity to any instrument and fully integrated user interfaces. NI TestStand—Eliminates the need for time-intensive in-house sequencer development and maintenance by providing an off-the-shelf test management software for validation and production test. NI DIAdem—Saves engineers hundreds of hours of manual data analysis and report creation with automation. NI FlexLogger™ software—Simplifies data acquisition and data logging with interactive measurement setup for NI DAQ hardware. NI InstrumentStudio™ software—Provides a central location for configuration, measurement, and automation.	View Product Details
