NI-9485
Starting at $745.00
779600-01
779600-02
8-Channel, SSR Relay, 60 VDC/30 Vrms, 750 mA C Series Relay Output Module
Overview
The NI-9485 allows for direct connection to a wide array of industrial devices such as motors, actuators, and DC devices. Each channel provides access to a solid state relay (SSR) for switching voltages up to 60 VDC/30 Vrms with switching current up to 750 mA per channel or up to 1.2 A on four channels. Each channel also features channel-to-channel isolation.
Included Items
- Module
- 16-position screw terminal plug (NI-9975)
- Safety, Environmental, & Regulatory documentation
Part Numbers (2) Price | 779600-01 | 779600-02 |
|---|---|---|
| NI Lead Time | 8-9 weeks | 8-9 weeks |
| Maximum Switching Voltage AC | 30 V | 30 V |
| Front Connection Type | Screw Terminal(1) | Screw Terminal(1) |
| Relay Type | Solid State, FET | Solid State, FET |
| Number of Digital Output Only Channels | 8 | 8 |
| Conformal Coated | No | Yes |
| Maximum Switching Voltage DC | 60 V | 60 V |
| Enclosed | Yes | Yes |
| Supported Hardware Platform | C Series | C Series |
| Reconfigurable | — | — |
| Maximum Sample Rate | — | — |
| Number of Analog Input Channels | — | — |
| Maximum Digital Update Rate | 1 s | 1 s |
| Maximum Analog Update Rate | — | — |
| Number of Analog Output Channels | — | — |
| Number of Bidirectional Digital Channels | — | — |
| Operating Temperature Range | -40 °C to 70 °C | -40 °C to 70 °C |
| Bus Connection | C Series | C Series |
| Current Flow Direction | Relay Output | Relay Output |
| Digital I/O Isolation | 60 VDC Ch-Ch Isolation | 60 VDC Ch-Ch Isolation |
| Digital I/O Logic Levels | Requires External Power Supply | Requires External Power Supply |
| Maximum Clock Rate | 1 Hz | 1 Hz |
| Number of Counters/Timers | — | — |
| Number of Digital Input Only Channels | — | — |
| Number of External Clock Inputs | — | — |
| Signaling Type | — | — |
| Supports Peer To Peer Streaming | — | — |
| Product Description | NI 9485 8-Ch, ±60 VDC, 750 mA SSR C Series Module | NI-9485 C Series Relay Output Module, 8-Ch SSR, ±60 VDC, 750 mA, Conformal Coated |
NI-9485 Accessories and Software

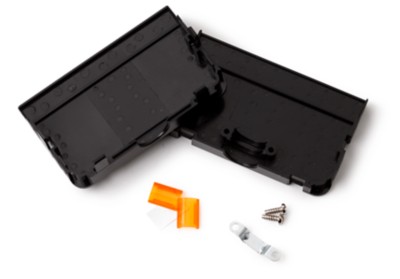

- Model (Part Number)DescriptionImageCompatible Part NumberscRIO-9939 (192692-01)NI 9939 Backshell for 16-pos Screw Terminal Connector Block (qty 1)779600-01, 779600-02
