NI-9860
Starting at $836.00
788651-01
783703-01
783703-03
2-Port, C Series Vehicle Multiprotocol Interface Module
Overview
The NI-9860 is a hardware-selectable HS/FD controller area network (CAN) and/or local interconnect network (LIN) interface for developing CAN and/or LIN applications. As part of the NI-XNET platform, the NI-9860 works well for applications requiring high-speed manipulation of hundreds of frames and signals while taking other data acquisition measurements in the same CompactDAQ hardware platform or while performing low-level FPGA control and embedded monitoring in the same CompactRIO chassis.
Included Items
- Module
- 1 m, 2-pin Microfit pigtail cable, female
- Safety, Environmental, and Regulatory documentation
Part Numbers (3) Price | 788651-01 | 783703-01 | 783703-03 |
|---|---|---|---|
| NI Lead Time | 14-15 weeks | 6-7 weeks | 6-7 weeks |
| Enclosed | Yes | Yes | Yes |
| Conformal Coated | No | No | Yes |
| Operating Temperature Range | -40 °C to 55 °C | -40 °C to 70 °C | -40 °C to 70 °C |
| Reconfigurable | No | No | No |
| Bus Connection | C Series | C Series | C Series |
| Maximum Baud Rate | 8 Mbits/s | 8 Mbits/s | 8 Mbits/s |
NI-9860 Accessories and Software

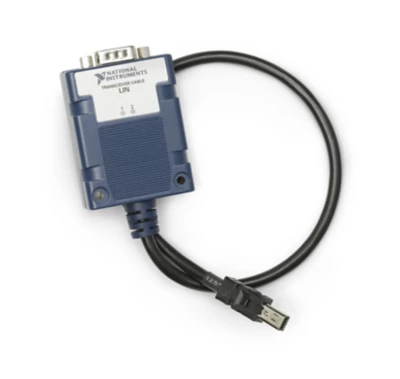

- Model (Part Number)DescriptionImageCompatible Part NumbersTRC-8543 (783701-02)TRC-8543, NI-XNET CAN XS (LS/FT, HS/FD) Transceiver Cable, 18 in.788651-01, 783703-01, 783703-03TRC-8546 (783702-02)TRC-8546, NI-XNET LIN Transceiver Cable, 18 in.788651-01, 783703-01, 783703-03TRC-8542 (783699-02)TRC-8542, NI-XNET CAN HS/FD Transceiver Cable, 18 in.788651-01, 783703-01, 783703-03TRC-8542 (783699-03)TRC-8542, NI-XNET CAN HS/FD Transceiver Cable, 18 in., Conformal Coated788651-01, 783703-01, 783703-03TRC-8543 (783701-03)TRC-8543, NI-XNET CAN XS (LS/FT, HS/FD) Transceiver Cable, 18 in., Conformal Coated788651-01, 783703-01, 783703-03TRC-8546 (783702-03)TRC-8546, NI-XNET LIN Transceiver Cable, 18 in., Conformal Coated788651-01, 783703-01, 783703-03TRC-8543 (789803-01)TRC-8543, NI-XNET CAN XS (LS/FT, HS/FD) SIC Transceiver Cable, 18 IN788651-01, 783703-01, 783703-03TRC-8542 (789802-01)TRC-8542, NI-XNET CAN HS/FD SIC Transceiver Cable, 18 IN788651-01, 783703-01, 783703-03
- Product (Part Number)DescriptionRecommended use casesLabVIEW Professional (784584-35)LabVIEW Professional Development System, Windows, All Languages, Subscription License, Download
Recommended for test, measurement, automation, and control applications; NI LabVIEW enables engineers to quickly connect to real-world systems, accelerate their productivity, and adapt to any challenge. LabVIEW provides the following capabilities:
- Connectivity to any Instrument regardless of vendor
- A native user interface for monitoring and controlling test
- Thousands of engineering analysis functions
- Seamless interoperability popular programming languages, such as Python, C, and .NET
Automotive Diagnostic Command Set Toolkit (788516-35)Automotive Diagnostic Command Set Toolkit, Subscription LicenseRecommended for implementing automotive diagnostic commands into ECU test systems from validation to production test. This add-on for NI LabVIEW, NI LabWindows™/CVI software, and Microsoft Visual Studio provides support for UDS and OBD protocols.
Key Workflows
- Read and write parameters
- Access diagnostic trouble codes
- Flash ECU firmware
- Initiate ECU diagnostic test modes
LabVIEW+ Suite (788509-35)NI LabVIEW+ Suite, Subscription License, DownloadRecommended for engineers building full test and validation systems where modular code development and higher-level frameworks are needed to accelerate development for shorter time to market.
The LabVIEW+ Suite includes the following products:
- NI LabVIEW—Provides a graphical programming environment for test system development, enabling connectivity to any instrument and fully integrated user interfaces.
- NI TestStand—Eliminates the need for time-intensive in-house sequencer development and maintenance by providing an off-the-shelf test management software for validation and production test.
- NI DIAdem—Saves engineers hundreds of hours of manual data analysis and report creation with automation.
- NI FlexLogger™ software—Simplifies data acquisition and data logging with interactive measurement setup for NI DAQ hardware.
- NI InstrumentStudio™ software—Provides a central location for configuration, measurement, and automation.
