Switches

Switches facilitate signal routing between instruments and devices or units under test (DUTs and UUTs). Use these products to conduct general functional tests, semiconductor parametric tests, radar tests, high-power fault insertion, and more.

13 Results

    Platform Modules

    Platform modules integrate with modular hardware platforms that allow you to combine different types of modules in a custom system that leverages shared platform features. NI offers three hardware platforms—CompactDAQ, CompactRIO, and PXI—though all platforms may not be represented in this category.

  • Starting from

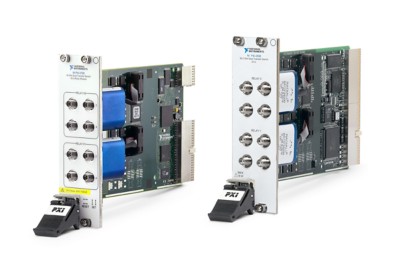

    Routes optical signals to simplify wiring in an optical test system.

    Feature Highlights:

    • Platform: PXI
    • Bus: PXI Express

  • Starting from

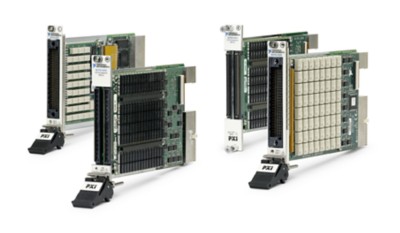

    Connect any input to any output to simplify wiring in automated test systems.

    Feature Highlights:

    • Platform: PXI
    • Bus: PXI, PXI Express

  • Starting from

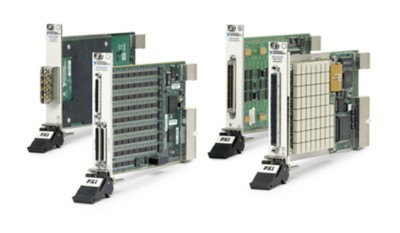

    Connect multiple inputs to a single output, or multiple outputs to a single input, to simplify wiring in automated test systems.

    Feature Highlights:

    • Platform: PXI
    • Bus: PXI, PXI Express

  • Starting from

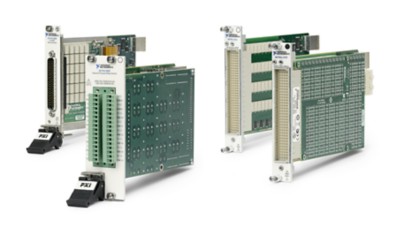

    Connect or disconnect individual relays to simplify wiring in automated test systems.

    Feature Highlights:

    • Platform: PXI
    • Bus: PXI, PXI Express

  • Starting from

    Connect any input to any output to simplify wiring in automated test systems.
    • Platform: PXI
    • Bus: PXI, PXI Express

  • Starting from

    Connect multiple inputs to a single output, or multiple outputs to a single input, to simplify wiring in automated test systems.
    Feature Highlights:
    • Platform: PXI
    • Bus: PXI, PXI Express

  • Starting from

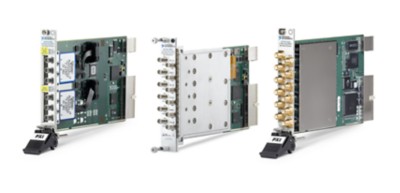

    Routes RF or microwave signals or inserts and removes components in a signal path.

    Feature Highlights:

    • Platform: PXI
    • Bus: PXI, PXI Express

  • Starting from

    Switches loads between two sources at frequencies up to 40 GHz.

    Feature Highlights:

    • Platform: PXI
    • Bus: PXI, PXI Express

  • Starting from

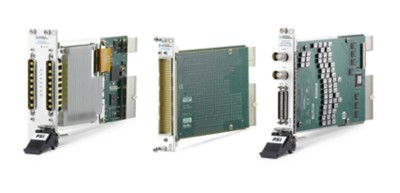

    Simulates open, pin-to-pin, short-to-battery, and short-to-ground faults for hardware-in-the-loop (HIL) and electronic reliability testing.

    Feature Highlights:

    • Platform: PXI
    • Bus: PXI, PXI Express

  • Starting from

    Replicates the behavior of resistance‐based devices by controlling a series of relays that varies resistance across each I/O connector channel.

    Feature Highlights:

    • Platform: PXI
    • Bus: PXI, PXI Express

  • Starting from

    Controls external relays using an internal power source or external power source.

    Feature Highlights:

    • Platform: PXI
    • Bus: PXI

  • Starting from

    Holds up to six Matrix Modules for SwitchBlock that you can use to create large matrices with more than 8,000 crosspoints in a single PXI chassis.

    Feature Highlights:

    • Platform: PXI
    • Bus: PXI

  • Starting from

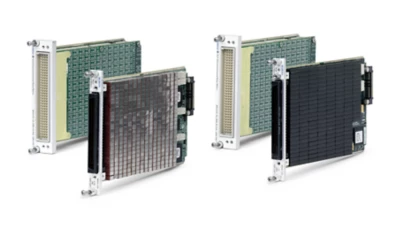

    Connect any input to any output with a switching matrix to simplify wiring in automated test systems.

    Feature Highlights:

    • Bus: Switchblock
