PXI Chassis

PXI chassis house PXI modules and controllers and connect them with a high-performance backplane that offers timing and synchronization capabilities. PXI chassis are compatible with PXI, PXI Express, and PXI hybrid modules.

front view of pxi 1095 18-slot chassis

Precise Timing and Triggering Using the PXI Chassis Backplane

The PXI backplane includes a common Reference Clock that you can use to synchronize multiple modules. It also offers capabilities such as a multidrop trigger bus and a matched trace length star trigger network for higher performance synchronization.

Built-In Chassis Design Features for a Stable, High-Performing System

NI PXI chassis offer technology designed to increase cooling performance, improve the acoustical efficiency, and enhance the reliability of the power supply.

2 Results

  • Starting from

    Houses PXI modules and connects them with a high-performance backplane that offers timing and synchronization capabilities.

    Feature Highlights:

    • Platform: PXI
    • Bus: PXI, PXI Express

  • Starting from

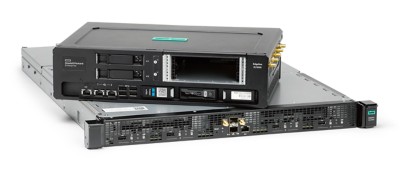

    Provides data center-level capabilities between operational and information technologies to capture and use loT data.
