Configures the Synchronization Mode, Measurement Offset, and Measurement Length parameters for the code domain analysis (CDA) measurement.


icon

Inputs/Outputs

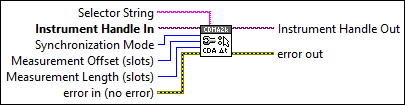

  • cstr.png Selector String —

    Selector String specifies a selector string comprising of the signal name. If you do not specify the signal name, the default signal instance is used. The default value is "" (empty string).

    Examples:

    ""

    "signal::sig1"

    You can use the RFmxCDMA2k Build Signal String VI to build the selector string.

  • cgenclassrntag.png Instrument Handle In —

    Instrument Handle In specifies the RFmx session refnum. Instrument Handle In is obtained from the RFmxInstr Initialize NIRFSA VI.

  • ci32.png Synchronization Mode —

    Synchronization Mode specifies whether the measurement is performed from the frame, slot, or symbol boundary.

    The default value is Slot.

    Frame (0) The frame boundary is detected, and the measurement is performed over the number of slots specified by the Measurement Length parameter starting at the Measurement Offset slots from the frame boundary.
    Slot (1) The slot boundary is detected, and the measurement is performed over the number of slots specified by the Measurement Length parameter starting at the Measurement Offset slots from the slot boundary.
    Arbitrary (2) The symbol boundary is detected, and the measurement is performed over the number of slots specified by the Measurement Length parameter starting at the Measurement Offset slots from the symbol boundary.
  • ci32.png Measurement Offset (slots) —

    Measurement Offset specifies the measurement offset to skip from the synchronization boundary. The synchronization boundary is specified by the Synchronization Mode parameter. This value is expressed in slots.

  • ci32.png Measurement Length (slots) —

    Measurement Length specifies the duration of code domain measurement. This value is expressed in slots.

    The default value is 0. The valid values are 1 to 16, inclusive.

  • cerrcodeclst.png error in (no error) —

    error in describes error conditions that occur before this node runs. This input provides standard error in functionality.

  • igenclassrntag.png Instrument Handle Out —

    Instrument Handle Out passes a reference to your RFmx session to the next VI.

  • ierrcodeclst.png error out —

    error out contains error information. This output provides standard error out functionality.
