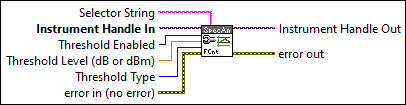

RFmxSpecAn FCnt Configure Threshold (VI)
Owning Palette: FCntConfigures the threshold level for the samples that need to be considered for the frequency count (FCnt) measurement. Enable the threshold when analyzing burst signals or signals with dead time.
 |
Instrument Handle In specifies the RFmx session refnum. Instrument Handle In is obtained from the RFmxInstr Initialize NIRFSA VI. |
||||
 |
Threshold Enabled specifies whether to enable thresholding of the acquired samples to be used for the measurement. The default value is False.
|
||||
 |
Threshold Level specifies either the relative or absolute threshold power level based on the value of the Threshold Type parameter. The default value is -20 dB. |
||||
|
Threshold Type specifies the reference for the power level used for thresholding. The default value is Relative.
|
||||
 |
Selector String specifies a selector string comprising of the signal name. If you do not specify the signal name, the default signal instance is used. The default value is "" (empty string). Example: "" "signal::sig1" You can use the RFmxSpecAn Build Signal String VI to build the selector string. |
||||
 |
error in describes error conditions that occur before this node runs. This input provides standard error in functionality. |
||||
 |
Instrument Handle Out passes a reference of your RFmx session to the next VI. |
||||
 |
error out contains error information. This output provides standard error out functionality. |
