 RFmxSpecAn ACP Configure Carrier and Offsets (VI)

RFmxSpecAn ACP Configure Carrier and Offsets (VI)

Owning Palette: ACP

Configures a carrier channel with offset channels on both sides of the carrier as specified by the number of offsets. The offset channels are separated by +/- n * channel spacing from the center of the carrier. Power is measured over the integration bandwidth for each channel.

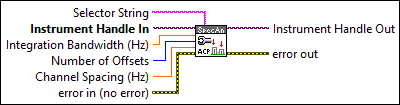

RFmxSpecAn ACP Configure Carrier and Offsets


Instrument Handle In specifies the RFmx session refnum. Instrument Handle In is obtained from the RFmxInstr Initialize NIRFSA VI.


Integration Bandwidth specifies the frequency range, in Hz, over which the measurement integrates the carrier channel power. The default value is 1 MHz.


Number of Offsets specifies the number of offset channels. The default value is 1.


Channel Spacing specifies the spacing between offset channels. The default value is 1 MHz.


Selector String specifies a selector string comprising of the signal name. If you do not specify the signal name, the default signal instance is used. The default value is "" (empty string).

Example:

""

"signal::sig1"

You can use the RFmxSpecAn Build Signal String VI to build the selector string.


error in describes error conditions that occur before this node runs. This input provides standard error in functionality.


Instrument Handle Out passes a reference of your RFmx session to the next VI.


error out contains error information. This output provides standard error out functionality.
