Frequency List Mode
In frequency list output mode, the instrument generates a standard function using a list of frequencies you define. A frequency list is composed of steps, each one with a frequency/duration pair. Frequency lists are commonly used for frequency sweeps and frequency-shift-keying (FSK) applications.

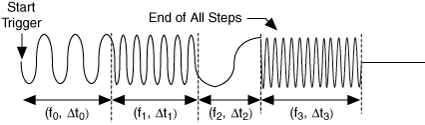

The following example shows a frequency list and the generated waveform when single trigger mode is selected. The trigger mode affects the timing and behavior of the waveform generation.
Step | Frequency | Duration |
---|---|---|
0 | 3.0 Hz | 1.0 s |
1 | 6.0 Hz | 0.9 s |
2 | 0.5 Hz | 0.75 s |
3 | 9.0 Hz | 1.1 s |
