PXI/PXIe-5650/5651/5652 Overview

This section includes useful information about the PXI/PXIe-5650/5651/5652 RF Analog Signal Generator, including front panel connectors, theory of operation, block diagrams, and calibration information.

The PXI/PXIe-5650/5651/5652 is a continuous-wave RF signal generator with modulation capability.

If used as a stand-alone device, the PXI/PXIe-5650/5651/5652 does not require interconnection with other hardware modules.

If you use the PXIe-5650/5651/5652 as a LO source for the PXIe-5673E Vector Signal Generator, you must connect the PXIe-5650/5651/5652 with other hardware modules. The hardware modules interconnect using SMA-SMA coaxial cables included in your hardware kit. Refer to the getting started guide for your device for more information about interconnecting hardware modules.

The PXI/PXIe-5650/5651/5652 is available in the PXI or PXI Express form factor. The PXI-5650/5651/5652 is available only with two front panel connectors. The PXIe-5650/5651/5652 is available only with three front panel connectors.

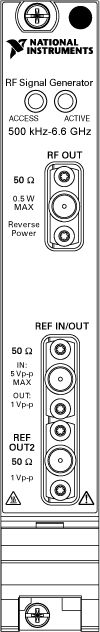

Figure 1. PXIe-5650/5651/5652
