DSSS Demod:Gated Power:User Defined Gate:Stop Time (s) Property

Short Name: DSSS User Defined Gate Stop Time (s)

Property of niWLANAnalysis

Specifies the end time of the user-defined gate. A value of 0 indicates that the stop time is the start of the payload. This value is expressed in seconds.

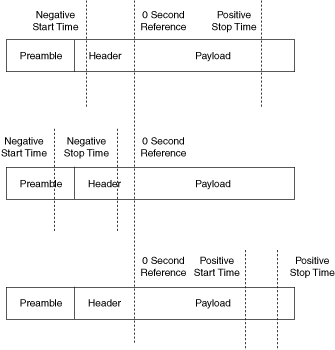

A negative value indicates a position in the preamble or header, as shown in the following figure.

The default value is 6.4 μs.

Remarks

The following table lists the characteristics of this property.

Datatype
Permissions	Read/Write
High-level VIs	N/A
Resettable	No
