NI PXI/PXIe-2575 1-Wire 196×1 Multiplexer Topology
- Updated2025-07-01
- 1 minute(s) read
The following figure represents the NI PXI/PXIe-2575 (NI 2575) in the 1-wire 196×1 multiplexer topology.
Making a Connection
You can control the channels using the niSwitch Connect Channels VI or the niSwitch_Connect function.
For example, to close the relay of channel 1, call niSwitch_Connect(vi, "ch1", "com"). To open the relay of channel 1, call niSwitch_Disconnect(vi, "ch1", "com").
When scanning the NI 2575, a typical scan list entry could be ch1->com;. This entry closes the relay between CH1 and COM.
Pinout

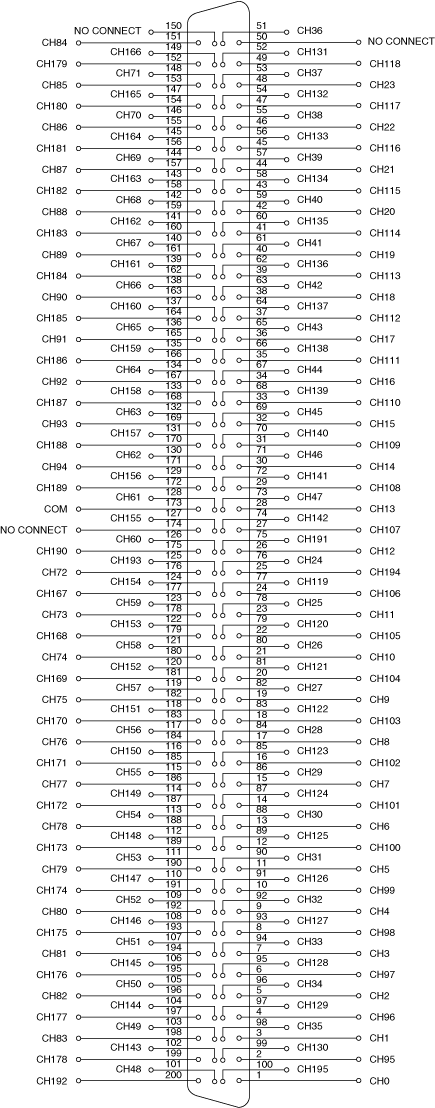

The following figure identifies the pins for the NI 2575 in the 1-wire 196×1 multiplexer topology.
