NI-RFPM Set RX Path VI
- Updated2023-12-28
- 6 minute(s) read
NI-RFPM Set RX Path VI
Installed With: NI-RFPMConnects the receive (Rx) path you specify to the underlying switch session that was passed into the NI-RFPM Init With Resources VI. The VI waits until the switch debounces or until timeout is reached.
This VI does not support the mmWave subsystem.

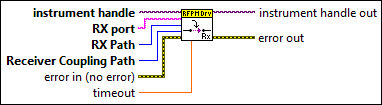

NI-RFPM Set RX Path By Parameters
Connects the receive (Rx) path you specify to the underlying switch session that was passed into the NI-RFPM Init With Resources VI. The VI waits until the switch debounces or until timeout is reached.
 |
instrument handle identifies your instrument session. instrument handle is obtained from the NI-RFPM Init With Resources VI and identifies a particular instrument session. |
||||||
 |
RX port specifies the port the specified receiver is associated with. |
||||||
 |
RX path specifies the path to connect using the underlying switch session.
|
||||||
|
Receiver Coupling Path specifies the port module coupling path to connect using the underlying switch session.
|
||||||
 |
The error in (no error) cluster can accept error information wired from VIs previously called. Use this information to decide if any functionality should be bypassed in the event of errors from other VIs. Right-click the error in (no error) control on the front panel and select Explain Error or Explain Warning from the shortcut menu for more information about the error.
|
||||||
 |
Timeout specifies the time to wait for the operation to complete before returning an error, expressed in seconds. |
||||||
 |
instrument handle out passes a reference to your instrument session to the next VI. instrument handle out is obtained from the NI-RFPM Init With Resources VI and identifies a particular instrument session. |
||||||
 |
The error out cluster passes error or warning information out of a VI to be used by other VIs. Use this information to decide if any functionality should be bypassed in the event of errors from other VIs.
|
NI-RFPM Set RX Path By Switch Path String
Connects the receive (Rx) path you specify to the underlying switch session that was passed into the NI-RFPM Init With Resources VI. The VI waits until the switch debounces or until timeout is reached.
|
instrument handle identifies your instrument session. instrument handle is obtained from the NI-RFPM Init With Resources VI and identifies a particular instrument session. |
||||||
|
RX Switch Path specifies the switch path of the receiver port. This string should be obtained from the Switch Path String parameter of the NI-RFPM Fetch Receiver Offsets VI. |
||||||
|
The error in (no error) cluster can accept error information wired from VIs previously called. Use this information to decide if any functionality should be bypassed in the event of errors from other VIs. Right-click the error in (no error) control on the front panel and select Explain Error or Explain Warning from the shortcut menu for more information about the error.
|
||||||
|
Timeout specifies the time to wait for the operation to complete before returning an error, expressed in seconds. |
||||||
|
instrument handle out passes a reference to your instrument session to the next VI. instrument handle out is obtained from the NI-RFPM Init With Resources VI and identifies a particular instrument session. |
||||||
|
The error out cluster passes error or warning information out of a VI to be used by other VIs. Use this information to decide if any functionality should be bypassed in the event of errors from other VIs.
|
