Configures the trigger that synchronizes the RF measurement with the RF pulse generation. RFSG exports a gate trigger around the RF pulse. The gate starts the RFSG pre-trigger time before the RF pulse, and the gate ends the RFSG post-trigger time after the pulse. RFmx only responds to a pulse trigger, so the RFmx reference trigger corresponds to the rising edge of the gate.

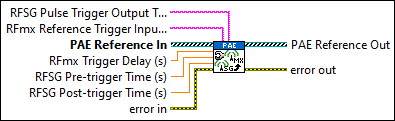

icon

Inputs/Outputs

  • cstr.png RFSG Pulse Trigger Output Terminal —

    Specifies where to export the selected signal. The default value is Do not export signal.

  • cstr.png RFmx Reference Trigger Input Terminal —

    Specifies the input terminal for the digital edge trigger. The default value is an empty string. An empty strings indicates no trigger is used.

  • cdatavalref.png PAE Reference In —

    Specifies the session reference handle of the PAE measurement session.

  • cdbl.png RFmx Trigger Delay (s) —

    Specifies the time, in seconds, RFmx waits after receiving a reference trigger before taking a measurement. The default value is 0.

  • cdbl.png RFSG Pre-trigger Time (s) —

    Specifies the amount of time, in seconds, that the gate trigger is high before the RF pulse starts.

  • cdbl.png RFSG Post-trigger Time (s) —

    The amount of time, in seconds, that the gate trigger remains high after the RF pulse stops.

  • cerrcodeclst.png error in —

    Error conditions that occur before this node runs. This input provides standard error in functionality.

  • idatavalref.png PAE Reference Out —

    Returns the session reference handle of the PAE measurement session.

  • ierrcodeclst.png error out —

    Error information. This output provides standard error out functionality.
