Creating a Custom Sample Label Format for the Measurement Studio Windows Forms Digital Waveform Plot
Print
PDFOverview
With the Measurement Studio DigitalWaveformPlot, you can create a custom sample label format to display on the DigitalWaveformGraph. To create a custom sample label format, create a class that derives from DigitalWaveformSampleFormat and override FormatSample.
The attached example creates a DigitalWaveformSampleFormat named CustomLabelFormat, which maps sample values to custom labels.
You use the CustomLabelFormat class to add sample-value label pairs and then assign the instance to the SampleLabelFormat property of the digital waveform plot. To create a digital waveform plot in the Windows Forms Designer, right-click the digital waveform graph and select Edit Plots. In the DigitalWaveformPlot Collection Editor dialog box, click Add. Click OK to return to the Windows Forms Designer. The attached example, customlabel, includes this code.

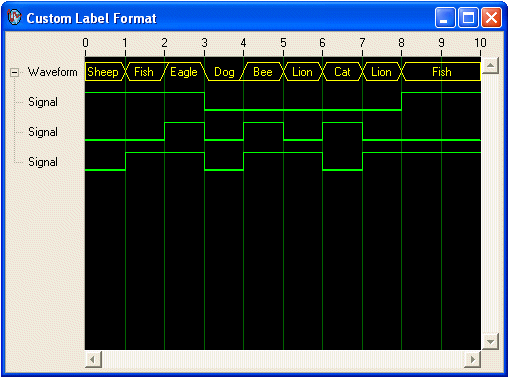

The following image shows the DigitalWaveformGraph using the CustomLabelFormat:
